Gelenkarmmarkise Erhardt BS

open folding arm awning ERHARDT BS

for modern demands




Product description

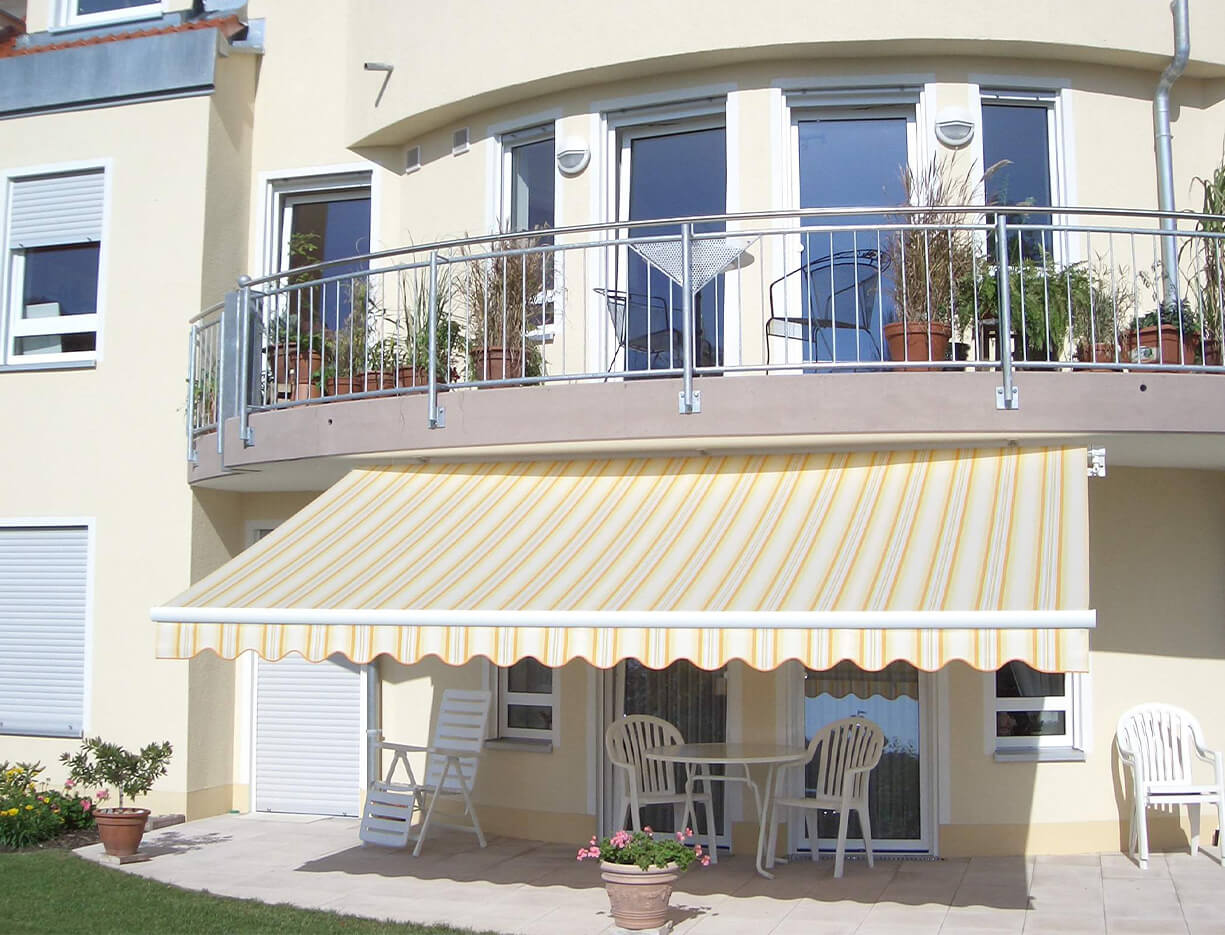

The ERHARDT BS is the ideal solution for every requirement, whether protected under a balcony or overhanging roof, free-hanging and exposed to everything the weather can throw at it, or with two levels of shade thanks to a Vario-Valance. The ERHARDT BS can be used as an open folding-arm awning in a protected area, in the open thanks to its additional rain cover, and/or as a completely enclosed system that provides full protection for the fabric and the mechanism. For optimum vertical protection from the sun and to give you the privacy you want, the ERHARDT BS »Deluxe« can be equipped with a Vario-Valance, which can be operated conveniently in the same way as the main awning via the wireless hand transmitter. The awning is equipped with a valance as standard, and a designer drop profil is also available.recommend our Soltis fabric collection for the double awning. This fabric allows a view towards the outside from the inside.

ERHARDT BS L-Version: more failure than width

Our L models are designed for exceptional stability using different arm positions. The folding arms are arranged one above the other. This makes dimensions with more projection length than width possible (e.g.: 250 cm x 400 cm). Ideal for deep balconies and terraces.

Technical details

Maximum dimensions: 700 x 400 cm (width x depth)

Deluxe double awning: 700 x 350 cm (width x depth)

open folding-arm awning: no weather protection for the awning available (no rain protection roof, see BS-D)

Frame colour: White (RAL 9016), Grey-aluminium structured (RAL 9007 finely structured), Anthracite(DB 703)

Custom colour? available in any RAL colour

Fabric designs : over 250 designs

  • Tibelly Classic collection (acrylic)
  • Tibelly Ambiente collection (polyester)
  • Vario-Valance: Soltis fabric

Inclination angle: 5° – 40°

Special features:

  • Cassette height of 15 cm
  • Exceptionally stable (can shade large areas)
  • Vario-Valance available with remote control motor
  • Can be coupled
  • Range of versions available



Optional accessories
  • Motor control (also with Vario-Valance)
  • Remote control (also with Vario-Valance)
  • Automatic wind and sun sensors
  • Wireless oscillation sensor
  • Awning fabric with welding adhesive technology
  • Infrared heater (including wireless level control)
  • Vario-Valance also for »Deluxe« model
  • Convenient angle adjustment with Variomatic
  • »Deluxe« version: Designer drop profile instead of fabric valance



Equipment recommendation

The awning with Vario-Valance can be extended vertically up to 1.60 m (using a crank or remote-con-trol motor) to significantly improve the shaded area. What’s more, the vertical awning offers excellent protection against glare when the sun is low in the sky. The Soltis fabric designs give you a view towards the outside, but protect you from curious glances looking in.



CONTACT

design

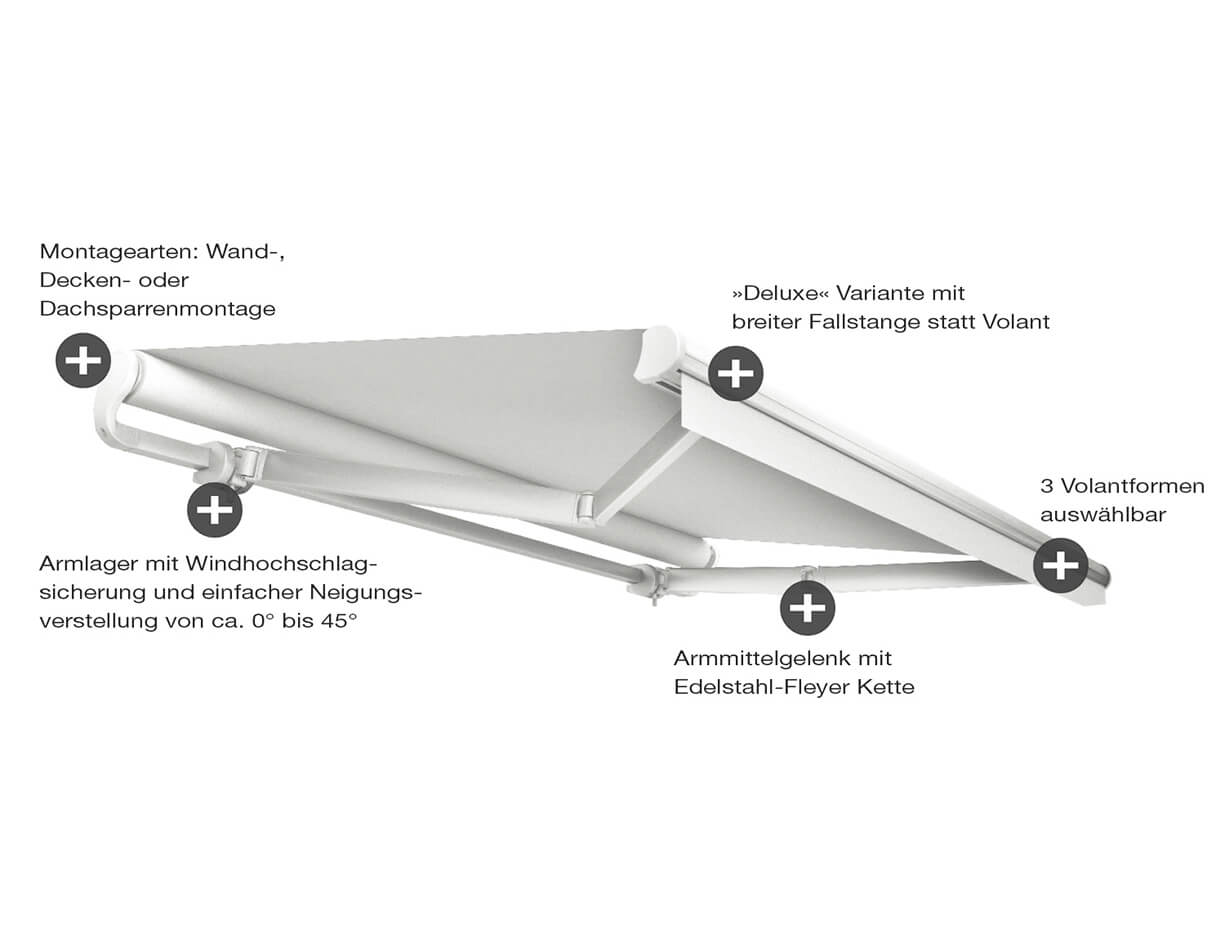

The sophistication of the ERHARDT BS lies in its simplicity and the modular concept – the level of protection and the design can be adapted depending on the requirements.

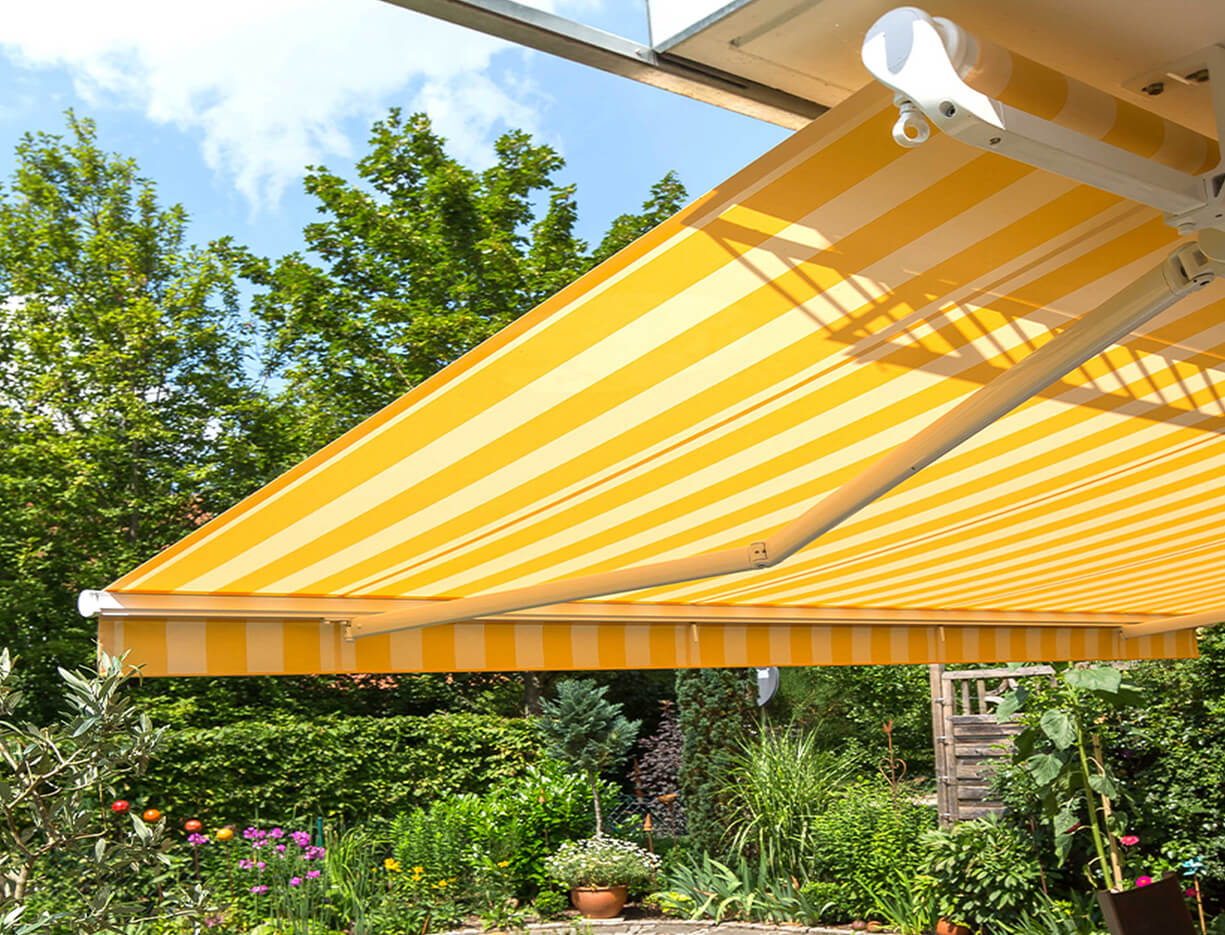

High-quality folding arms

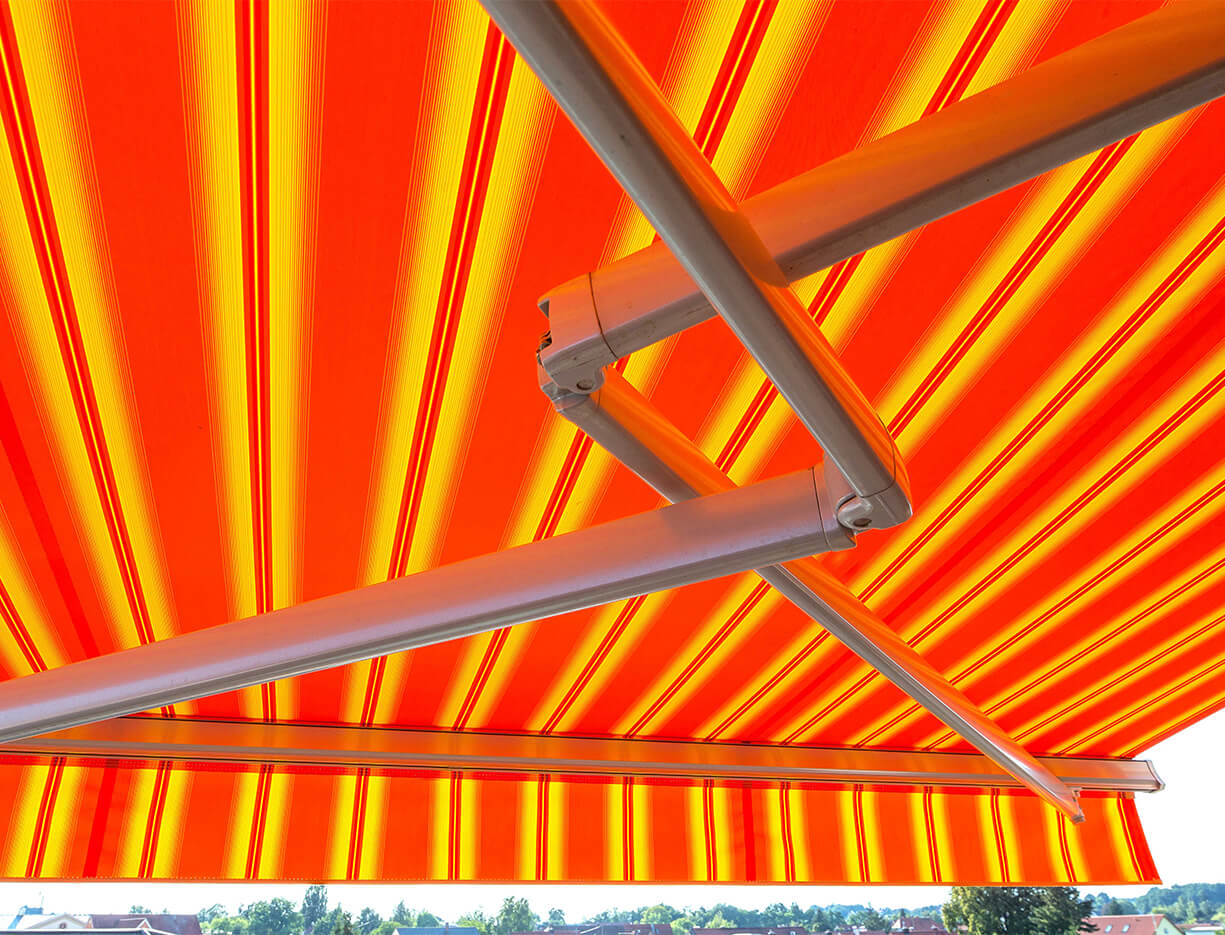

The folding arms, made from extruded aluminium, ensure optimum fabric tension and are equipped with a maintenance-free stainless steel fl yer chain as standard.

Vario-Valance for more protection

An optional Vario-Valance, which is operated independently of the main awning and can be extended by up to 160 cm, provides protection from low sun and prying eyes.

Assembly options

Every ERHARDT BS is available with wall bracket, ceiling mounting and rafter mounting options to provide a customised solution to meet the demands of every situation.

CE Made in Germany

All ERHARDT Markisenbau products are made in Burtenbach, Bavaria. All-round service and continuous production control guarantee high quality.
