conservatory awning ERHARDT TM

Product discription
  • The new TM terrace awning lets you relax in your favourite place in a pleasant, shaded atmosphere.

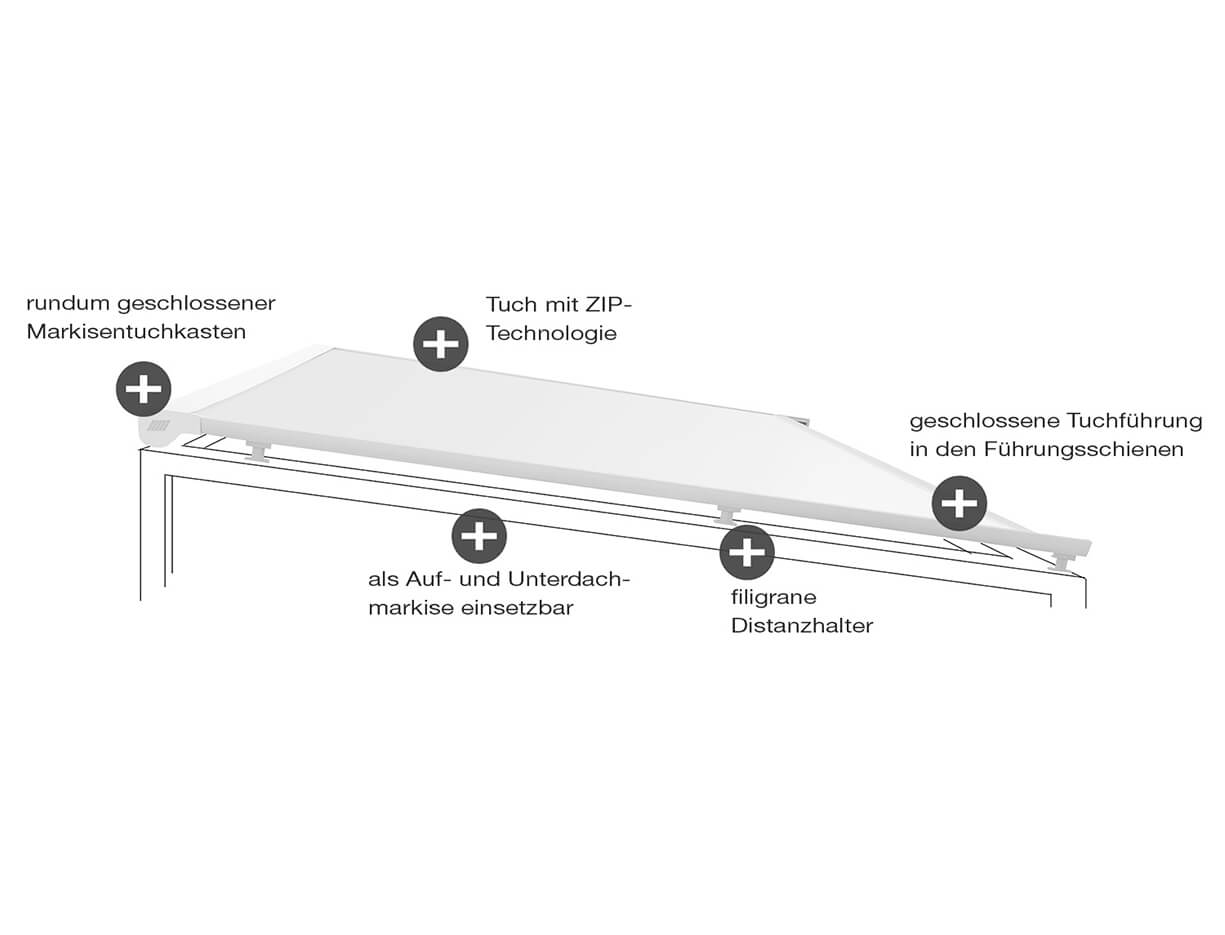

  • The TM is impressive with its completely new design and its Zip technology, which eliminates the light gap between the guide rail and the fabric. It is suitable as a small, compact awning especially for terrace roofs and conservatories.

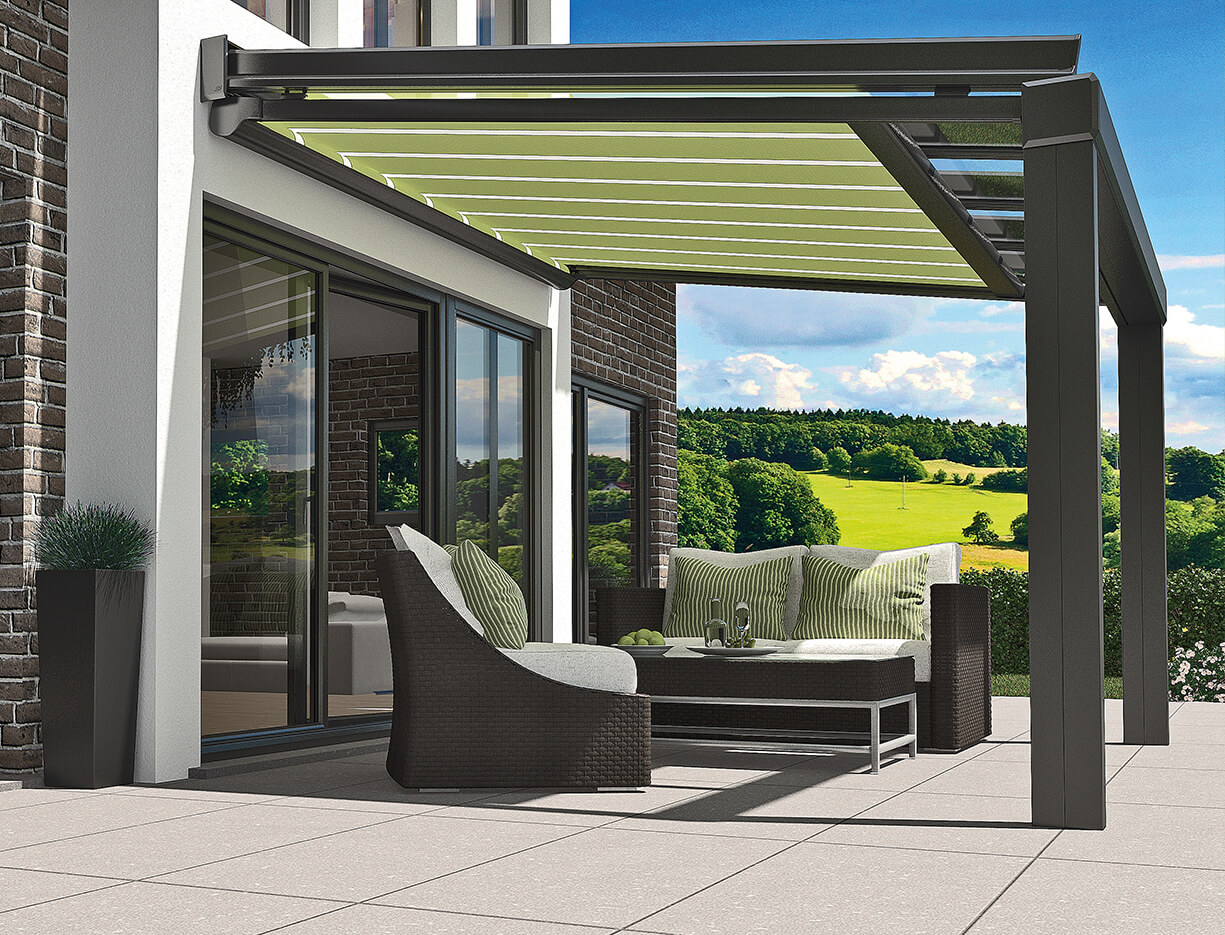

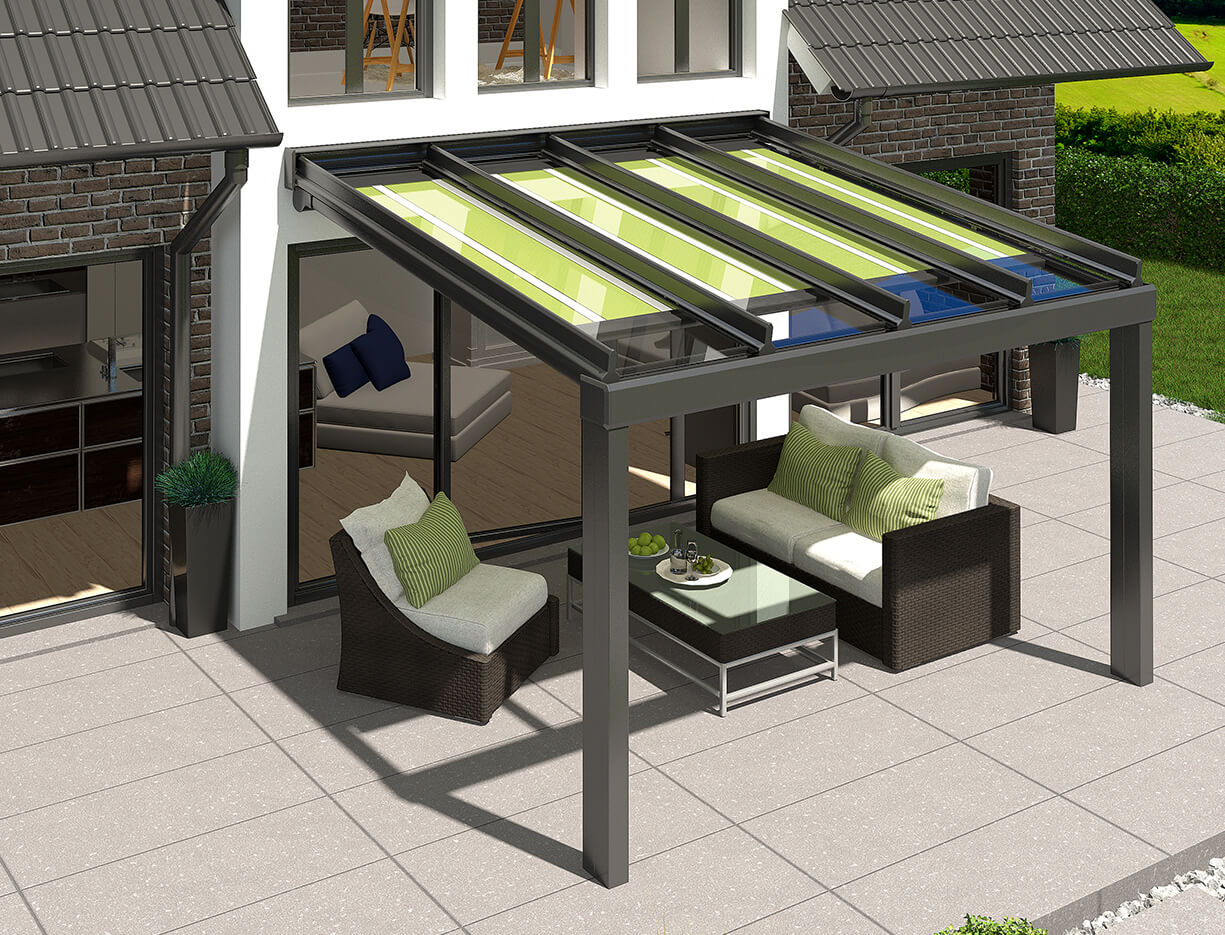

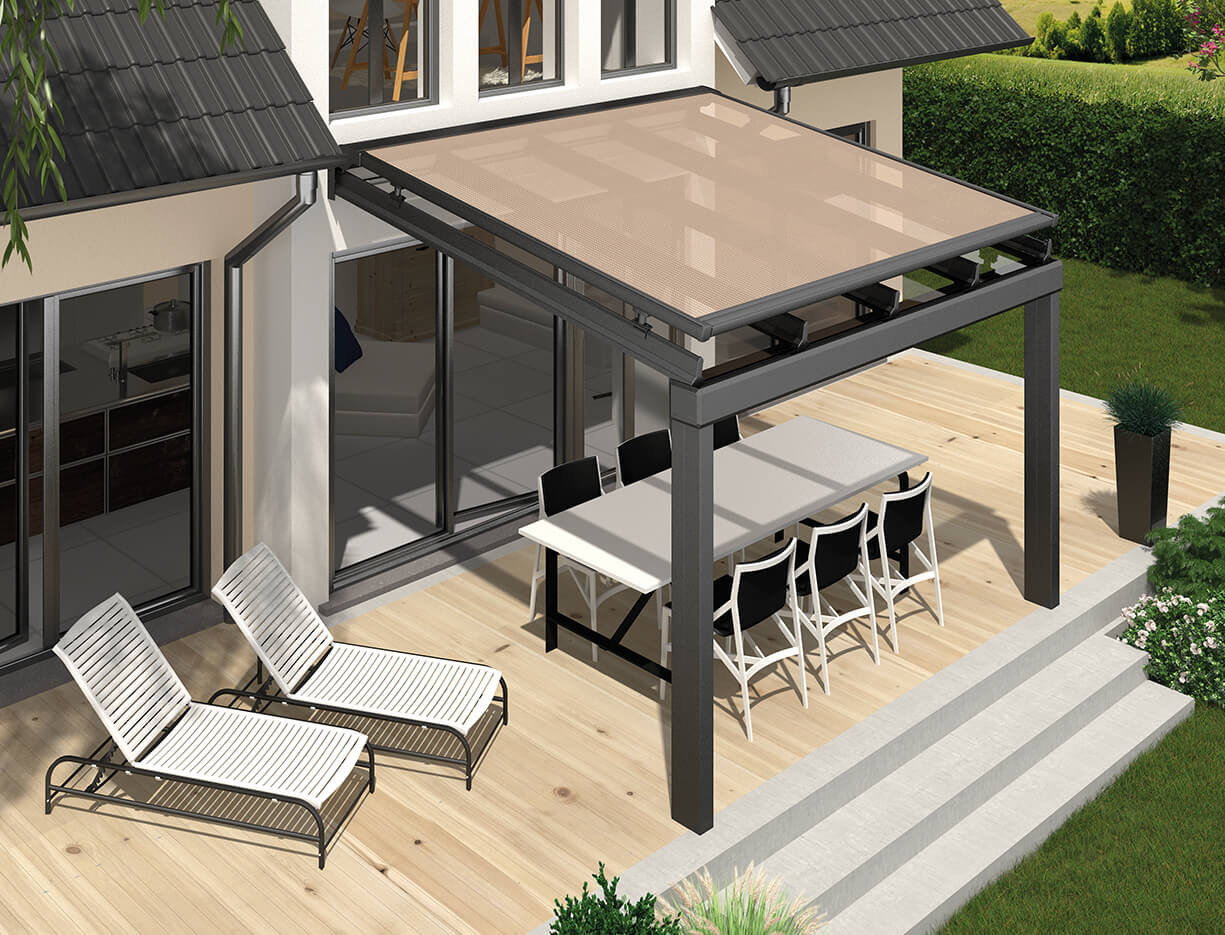

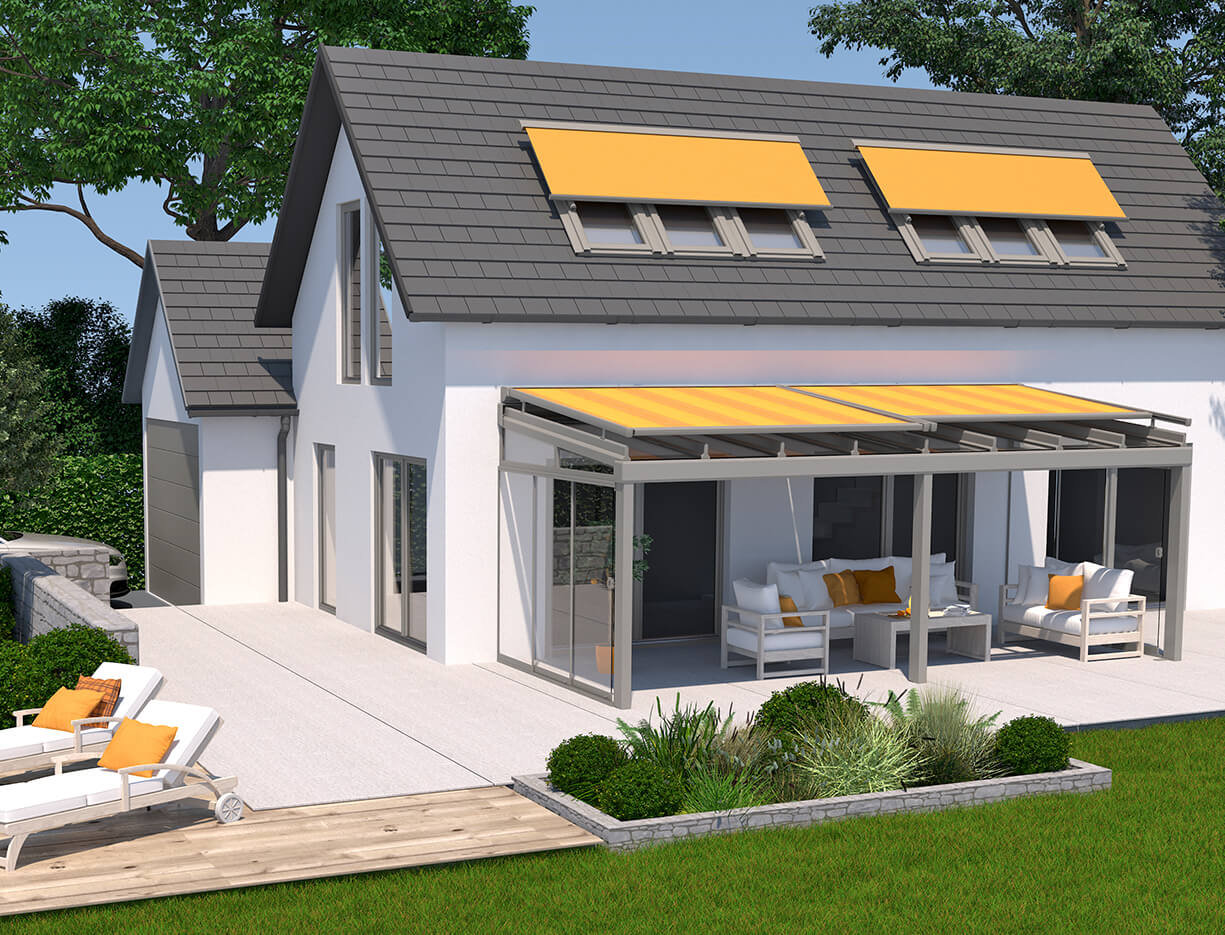

  • Depending on requirements, the slim awning design makes either on-roof or under-roof mounting possible.
  • The two elegant lateral guide rails are mounted using special spacers. These rails offer the option of supplying the fabric either with a Zip function or with the more conventional gap.
  • Several units can be mounted next to each other, even if they have different projection lengths.
  • An extensive range of accessories, such as lighting rails, heating elements and wireless motors with special sensors for sun, rain and wind, are available for the new awning.
  • With its fresh design and wide range of options, the ERHARDT TM gives you customisable protection from the sun for your terrace.
Areas of application
  • Terrace roof
  • Conservatory
  • Domed skylights
  • Skylight windows
  • Roof lights
Technical details

Minimum width: 100 x 300 cm

Maximum dimensions:

  • Under-roof mounting: 600 x 450 cm (width x projection)
  • On-roof mounting: 500 x 450 cm (width x projection)

Mounting: 2 side rails on spacers (75-500 mm high)

Coupling type: Series mounting of several units is only possible with separate motors for each unit

Overhang: Rails max. 100 cm

Cassette awning: All-round protection for fabric and mechanism

Frame colour: White RAL 9016, Anthracite DB 703, Anthracite grey RAL 7016 str., Grey-aluminium RAL 9007 str.

Custom colour? Any RAL colour is possible.

Fabric designs:

  • ERHARDT Ambiente collection (polyester)
  • ERHARDT Classic collection (acrylic)
  • Awning fabric with welded glue technology
  • Standard version: ZIP technology

Special features:

  • Motorised as standard
  • Spacers of different heights available
  • Auxiliary bracket for under-roof mounting
Optional accessories
  • Remote control motor with control unit
  • Automatic wind and sun sensors
  • Rain sensor
  • Under-roof mounting with lighting rail (optionally dimmable)
  • Infrared heater (incl. wireless level control)


Contact

MANY OPTIONS

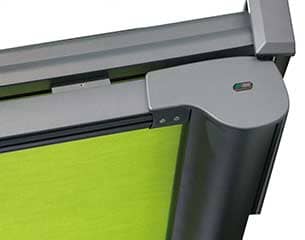

Design

The new TM terrace roof awning has been manufactured in a brand new, modern design. Clear, gentle contours produce a harmonious and visually pleasing overall look. The awning fits perfectly into the terrace roof, either as a covered underglass awning or as the ideal protection from the sun as an on-roof awning.
Wintergartenmarkise ERHARDT TM 18 -

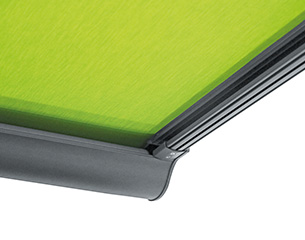

Zip

As standard, the new guide rail is always designed with the lateral zip function on the fabric, meaning that there is no longer a light gap between the fabric and lateral guide rail.
Wintergartenmarkise ERHARDT TM 18 -

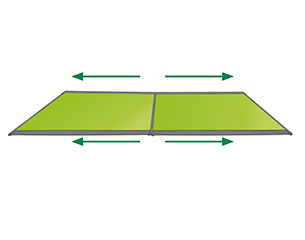

Size

The use of state-of-the-art technology allows sizes of 600 x 450 cm for under-roof mounting and 500 x 450 cm for on-roof mounting. Even larger units can be created by combining several awnings.

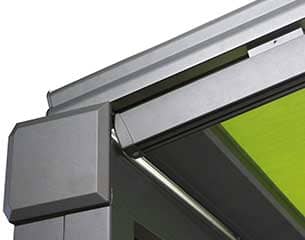

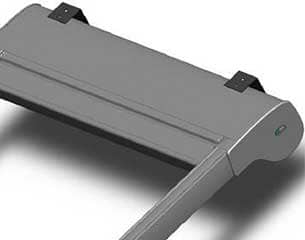

Mounting bracket

ERHARDT Markisenbau places great value on high-quality, easy assembly. Mounting brackets help meet these demands when installing the awning under an ERHARDT terrace roof and allow the awning to be assembled extremely quickly.

Flush drop profile

To complement the lateral zip function, the front drop profile closes flush, giving the awning a harmonious overall look and practically eliminating the light gap between it and the terrace roof purlin.
Wintergartenmarkise ERHARDT TM 18 -

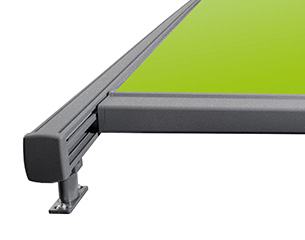

Very easily accessible revision cover in the drop profile

Adjustments on the drop profile can be made easily from the front and from below. It is no longer necessary to extend the awning, as the access cover can be opened and closed again from the front with a minimum of fuss.

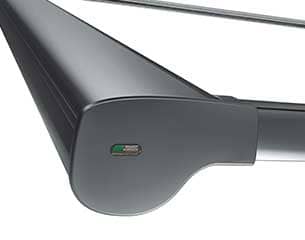

Almost invisible screws in the end cover area

The side covers are fi xed by use of concealed fasteners. The Hexagonal socket screws are hidden by “ERHARDT Markise” sticker, so no visible screw heads disturb the elegant design.

Made in Germany

All ERHARDT awnings are made in Burtenbach, Bavaria. All-round service and continuous production control guarantee high quality.
