Pergola Awning

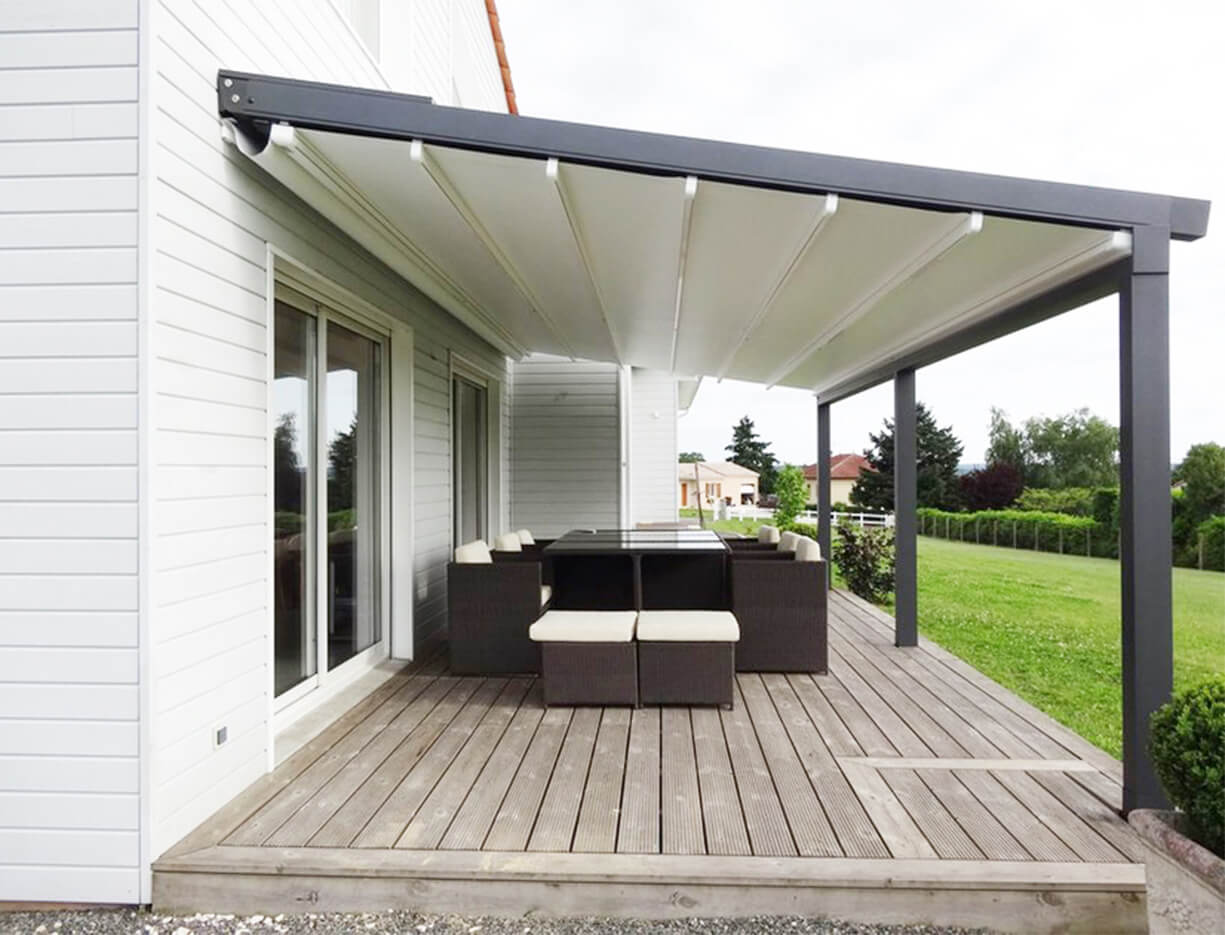

pergola awning QUBE Line

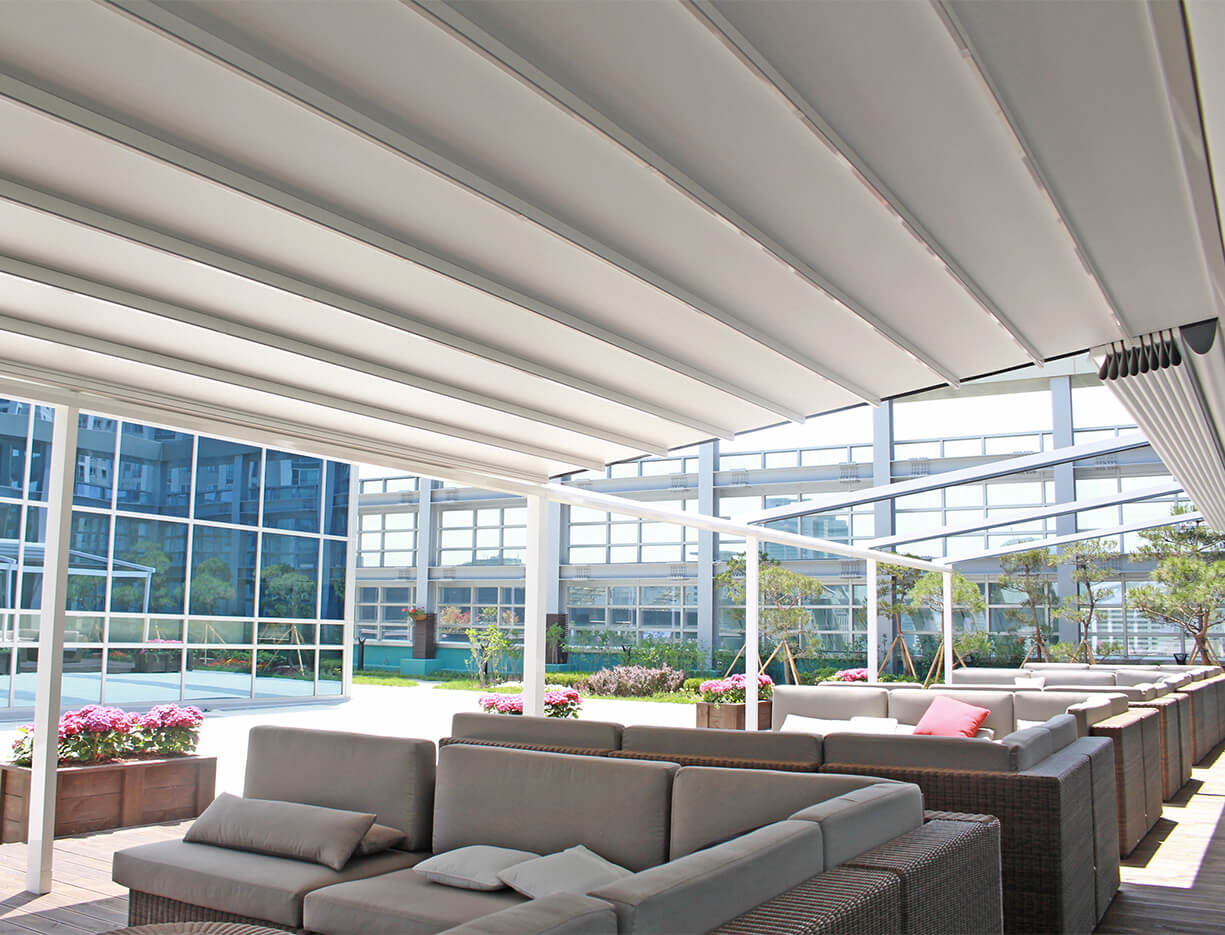

With its QUBE series, ERHARDT Markisen has extended its range of pergolas. The QUBE Line is a folding pergola and protects you from the sun, wind and rain on your terrace. It is discreet, lightweight and extremely elegant. The QUBE Line pergola is an innovative product with a precise and reliable fabric guidance system, which combines the lightness of the shapes with the good protective properties of the fabric. The fabric guidance system runs within the guide rails and the mechanism disappears into the particularly slender structure. Extend your outdoor season with additional optional acces-sories. At night, LED lighting ensures an atmospheric ambience on your terrace. The QUBE line with its elegant design integrates perfectly into your surroundings.
The extension and retraction of the awning fabric of the QUBE Line can be controlled individually. Each awning pull-out has an effect on the ambience under the pergola. You can use the awning fabric to control the solar radiation under the QUBE Line.
Maximum dimensions: 1300 x 500cm, 1150 x 550cm (max. width 1300 cm fabric in one piece)
Mounting technique: Wall mounting
Technology:
- One drive for bothguide rails
- 2 guide rails, 2 posts and one water gutter
- Motors compatible with Somfy RTS and io control
Frame colour: White RAL 9016, Anthracite DB 703, Anthracite grey RAL 7016 str., Grey-aluminium RAL 9007 str.
Custom colour? available in any RAL colour.
Fabric designs:
- FLEXLIGHT SMART 6002
- FLEXLIGHT OPAQUE 6002
- PRECONTRAINT 502 Satin
- PRECONTRAINT 622 Grigio
- PRECONTRAINT 602 BIANCO/AVORIO
- PRECONTRAINT 622 BIANCO/AVORIO
- SOLTIS PROOF W96
Special features:
- Concealed drainage through posts
- Optional outward moving gutter
- Wind resistance class 6 according to UNI EN 13561
- Not suitable for vertical awnings and substructure elements
- Automatic control for wind and rain control
- Lighting with LED strip in fabric support profile possible
- Infrared heating element
Contact
MANY OPTIONS
Sleek profiles, linear design

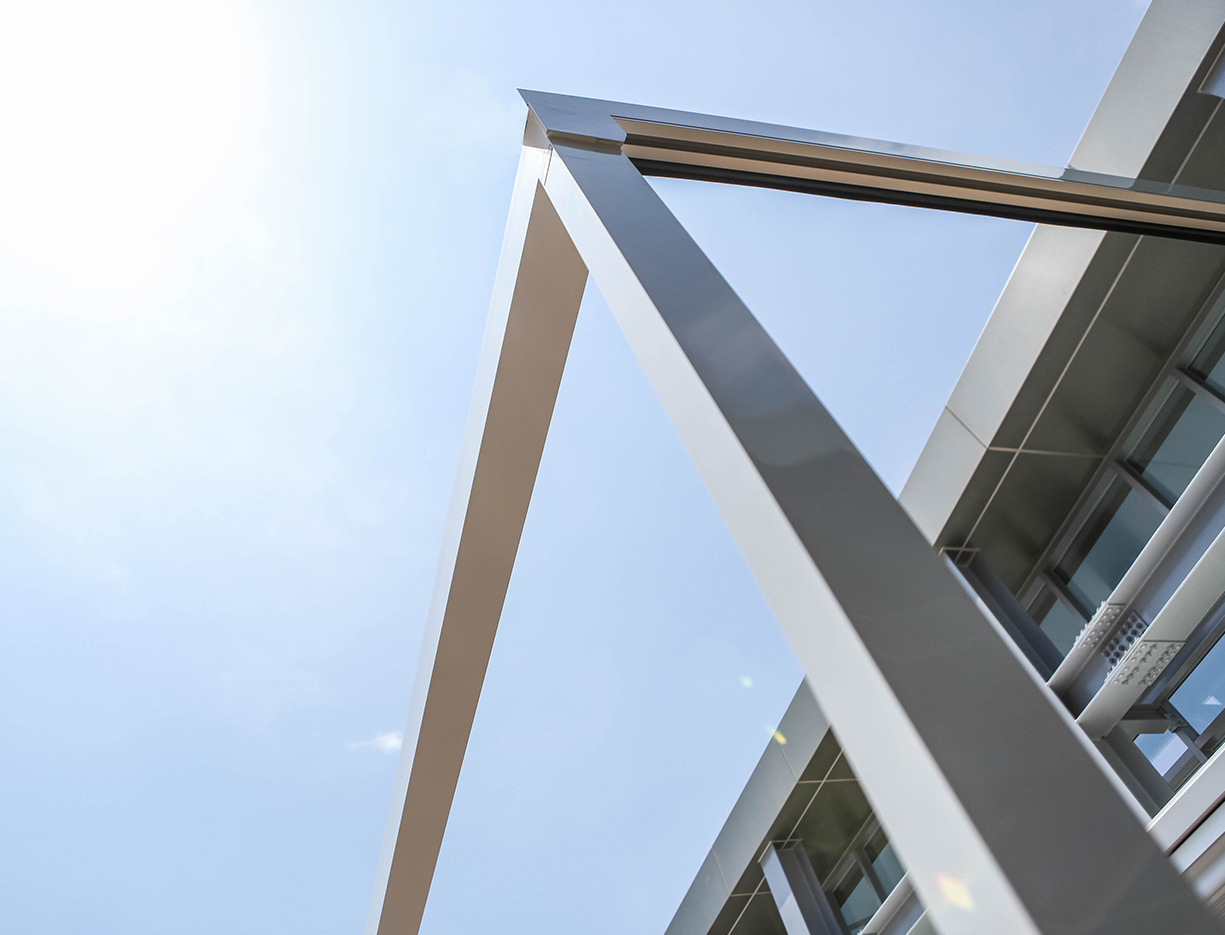

The QUBE Line is characterised by its sleek profiles and clear linear system. The light-weight aluminium construction, in combination with the waterproof fabric, creates ideal protection for your terrace without being obtrusive.
Provision of maximum shade

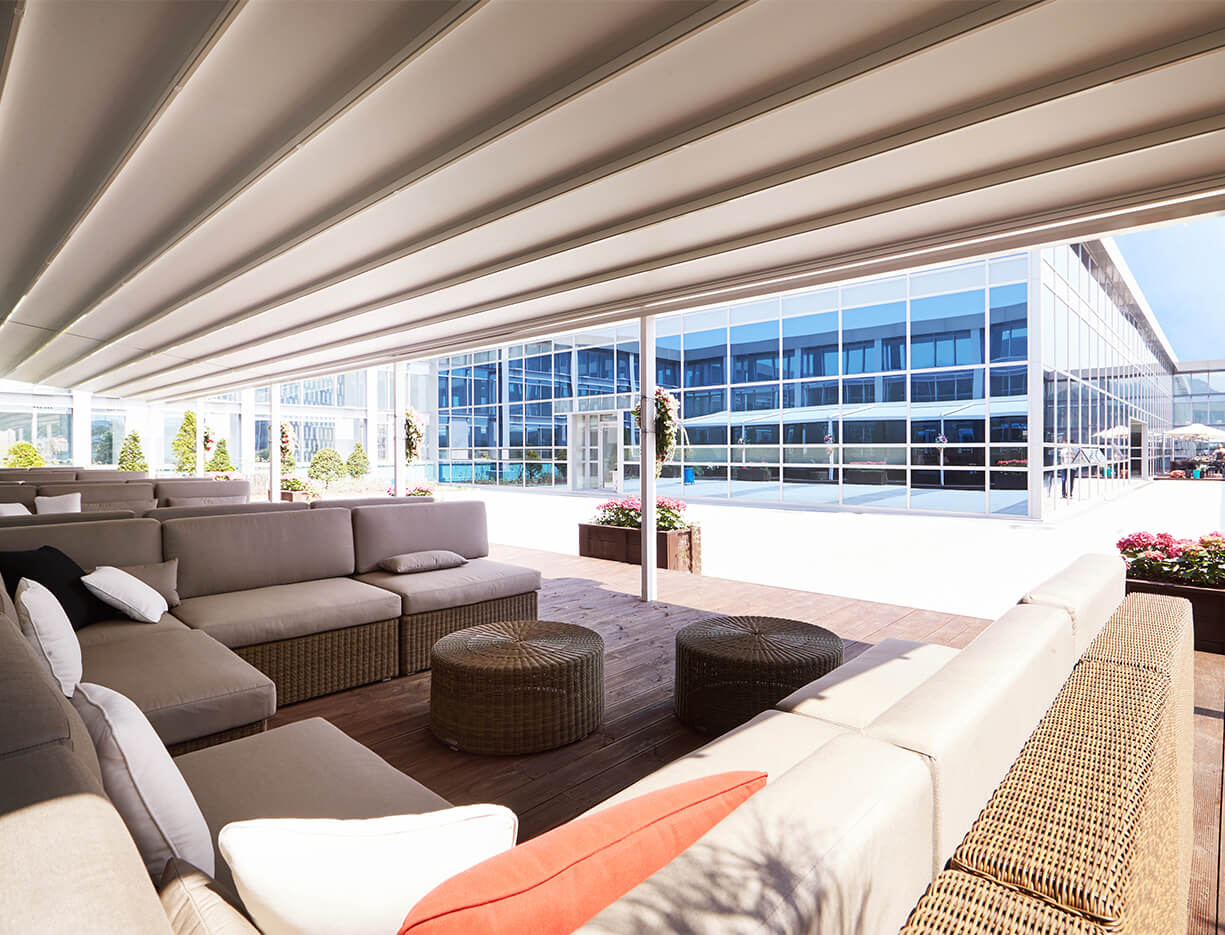

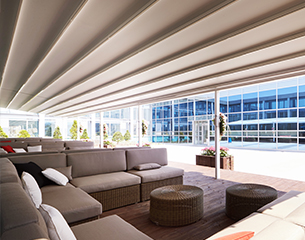

The QUBE Line can protect large terraces up to a width of 13 m and a depth of 5 m.
Patented sealing system

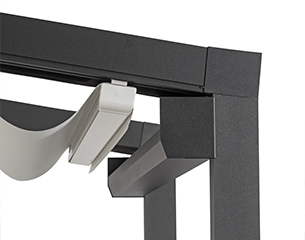

Patented rain protection piping is attached to the side guide rails. This profile cannot move when the fabric is moving and is attached to the fabric with two sealing lips. This ensures the required impermeability and prevents water from penetrating, even in the event of wind.
Ambience with dimmable LED
Your personal ambience may be ensured by means of integrable LED spots in the drop profile, which you can dim continuously via a remote control.
Optimum protection for the fabric

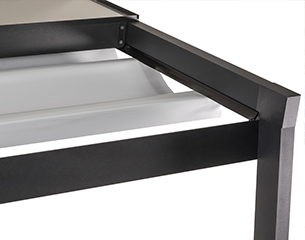

In its retracted state, the fabric is protected against dirt from above thanks to its rain cover.
Intelligent, concealed drainage
The waterproof fabric channels the rainwater into the front gutter. From there, the water is drained in a concealed manner by the supports. No external downpipe constructions disrupt the harmonious look.

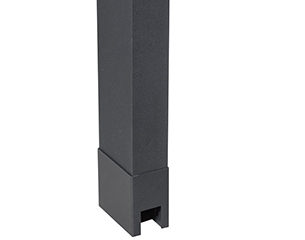

Adjustable support feet
The slightest unevenness of the terrace is incorporated within the construction. The concealed and adjustable support feet enable the pergola to be mounted quickly and perfectly.
Many options for your terrace

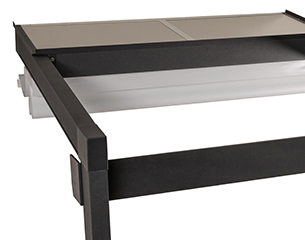

The QUBE Line offers a wide range of accessories to enable you to design your terrace in-dividually. An accompanying gutter rectifies the overall view and makes it even more sleek. Heating and light complete the whole package.
